E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox

Name: E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox
Brand: TGFQ
Price: 500.00 USD

Wholesale E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox from china suppliers

Brand Name : TGFQ

Model Number : E311C / 311C / E311D / E312D / E312D2

Place of Origin : CHINA

MOQ : 1

Price : 500.00-4000.00USD

Payment Terms : L/C, T/T, D/P, D/A

Supply Ability : 50 pcs / month

Delivery Time : 1-3days

Packaging Details : NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type

Product Name : 311C Excavator Travel Gearbox

Part Number : 176-9100 / 168-5286

Model : E311C / 311C / E311D / E312D / E312D2

Holes : 16(290MM) / 15(324MM)

Weight : 121KG

Packing : 44*44*46CM

Contact Now

E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox

Product parameter:

Product name:	311C Final Drive
Place of Origin:	China(mainland)
Model:	E311C / 311C / E311D / E312D / E312D2
Part Number:	176-9100 / 168-5286
MOQ:	1 PCS
Shaft:	13/17T
Delivery time:	Within 1-3 days after receiving the payment
Means of Transport:	By Sea, By Air or By Express

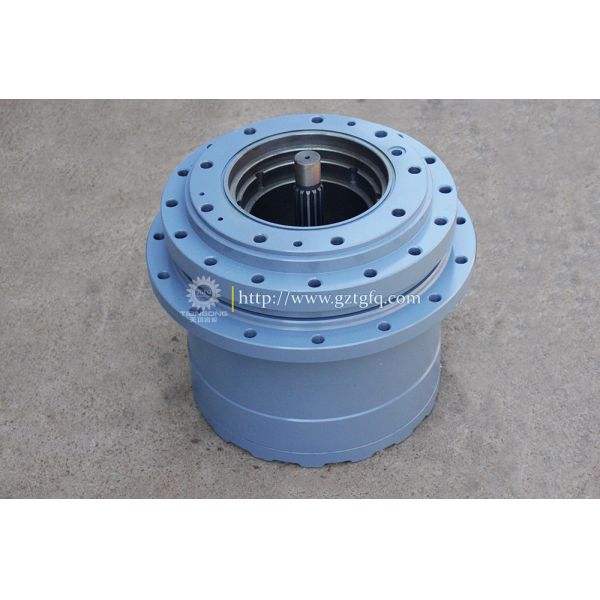

E311C Final Drive Picture:

E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox

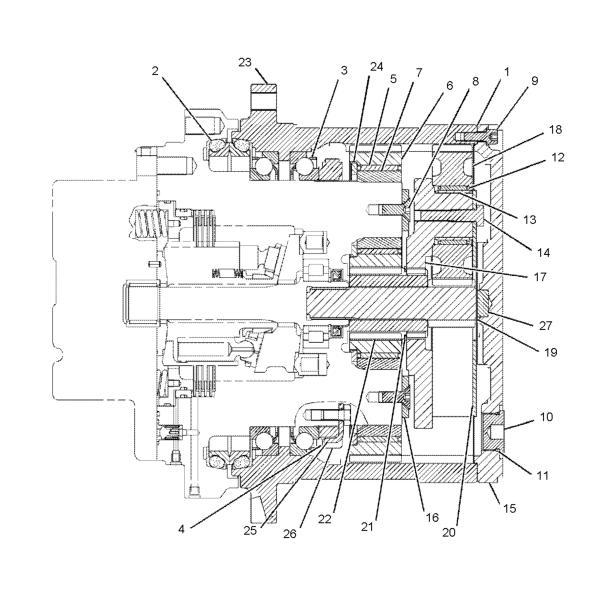

Drawing:

Pos.	Part No	Qty	Parts Name
1	1U-8846 B		SEALANT-GASKET
2	229-1410	[1]	SEAL GP-DUO-CONE
3	218-4247	[2]	BEARING
4	165-5854 M	[1]	RING-LOCKING
5	165-5855	[4]	BEARING
6	165-5856	[4]	GEAR (37-TEETH)
7	165-5857	[4]	RACE
8	6V-7726 M	[4]	SCREW-HEX SOCKET (M10X1.5X25-MM)
9	8T-1158 M	[16]	BOLT-SOCKET HEAD (M8X1.25X20-MM)
10	3E-2338	[2]	PLUG-PIPE
11	7M-8485	[2]	SEAL-O-RING
12	6V-5261	[3]	BEARING AS
13	165-5859	[3]	RACE
14	8T-4185 M	[3]	BOLT (M10X1.5X50-MM)
15	165-5860	[1]	COVER
16	176-8574	[1]	PLATE
17	165-5863	[1]	CARRIER
18	218-4246	[3]	GEAR-PLANETARY (40-TEETH)
19	165-5864	[1]	GEAR-SUN (17-TEETH)
20	165-5865	[1]	PLATE
21	165-5866	[1]	RING
22	165-5867	[1]	GEAR (19-TEETH)
23	165-5868	[1]	HOUSING
24	204-1086	[4]	PLATE
25	191-0862	[1]	PLATE-LOCK
26	8T-4137 M	[1]	BOLT (M10X1.5X20-MM)
27	094-0580	[1]	PLATE (10-MM THK)
	B		USE AS REQUIRED
	M		METRIC PART

E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox

OUR STOCK

We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage.

E311C Final Drive Travel Gearbox Apply For 311C Excavator Travel Gearbox

FAQ:
Q: What can you do?
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.

Q: Can I order one of our samples for testing first?
A: Of course!

Q: How do I order?
A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order.

Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
